Cadillac DeVille bolt pattern, wheel sizes and wheels that fit
Cadillac DeVille wheel fitment: bolt pattern 5x115 (1985–2005), 5x127 (1975–1984), factory wheel and tire sizes for every year, the aftermarket sizes DriveRight lists as tested, wheels in stock that fit, and 2 real wheel builds on the DeVille.
See wheels on your DeVilleQuick answers
What is the Cadillac DeVille bolt pattern?
It depends on the year: 5x115 on 1985–2005 and 5x127 on 1975–1984.
What size wheels fit a Cadillac DeVille?
Factory wheels: 15x6 +49 (2004–2005), 16x7 +49 (2000–2003), 15x6 +49 (1994–1999) and 14x6 +38 (1988–1993). DriveRight's tested aftermarket sizes for the 2005 DeVille: 15 to 18 in, offsets +35 to +50.
What offset fits a Cadillac DeVille?
On the 2005 DeVille, DriveRight's tested offsets run +35 to +50 depending on width and diameter. Lower offsets push the wheel out toward the fender; the table below lists factory offsets by year.
What lug nuts and hub bore does the Cadillac DeVille use?
Lug thread: M12x1.5 (1985–2005) and 1/2 UNF (1975–1984). Hub bore: 70.3 mm (1975–2005).
What tire size does the Cadillac DeVille use?
Factory tires: 225/60R16 (1994–2005), 205/75R14 (1985–1993), G78-15 (1977–1984) and HR78-15 (1975–1976).
Cadillac DeVille wheel specs by year
| Years | Bolt pattern | Hub bore | Factory wheel | Factory tire | Lug thread | Tested aftermarket sizes |
|---|---|---|---|---|---|---|
| 2004–2005 | 5x115 | 70.3 mm | 15x6 +49 | 225/60R16 | M12x1.5 | 15 to 18 in, offsets +35 to +50 |
| 2000–2003 | 5x115 | 70.3 mm | 16x7 +49 | 225/60R16 | M12x1.5 | 16 to 19 in, offsets +35 to +49 |
| 1994–1999 | 5x115 | 70.3 mm | 15x6 +49 | 225/60R16 | M12x1.5 | 15 to 18 in, offsets +35 to +50 |
| 1988–1993 | 5x115 | 70.3 mm | 14x6 +38 | 205/75R14 | M12x1.5 | 14 to 18 in, offsets +35 to +45 |
| 1985–1987 | 5x115 | 70.3 mm | 14x6 +49 | 205/75R14 | M12x1.5 | 14 to 17 in, offsets +35 to +49 |
| 1977–1984 | 5x127 | 70.3 mm | 15x6 +10 | G78-15 | 1/2 UNF | 14 to 17 in, offsets +35 to +45 |
| 1975–1976 | 5x127 | 70.3 mm | 15x6 +40 | HR78-15 | 1/2 UNF | 15 in, offsets +40 to +40 |
Specs: DriveRight vehicle data, base trim per year. Trims can differ; pick yours in the visualizer for an exact list.
Wheels in stock that fit the 2005 Cadillac DeVille
Cadillac DeVille wheel builds

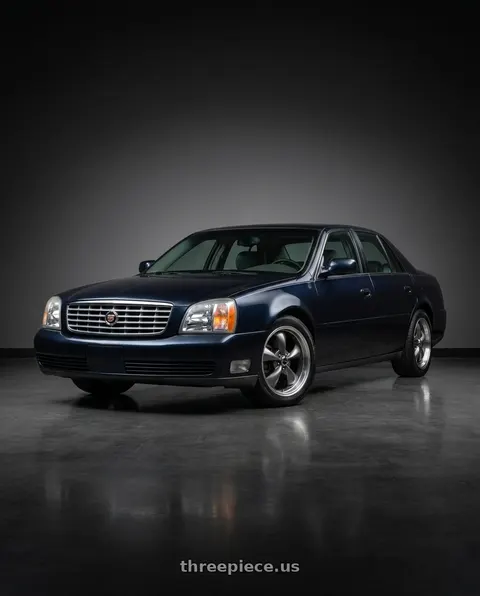

2005 Cadillac DeVilleAmerican Racing AR105 TORQ THRUST M 5X115 16X7 +35 ANTHRACITE W/ MACHINED LIP

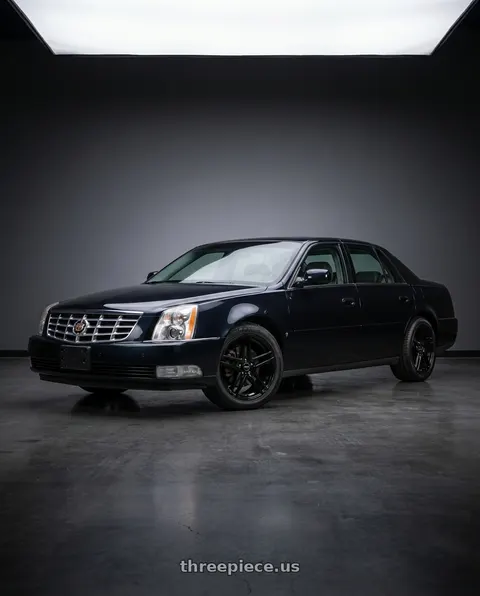

2005 Cadillac DeVilleAmerican Racing AR907 5X115 16X7 +40 GLOSS BLACK
