Chevrolet Equinox wheels
Chevrolet Equinox wheel fitment: bolt pattern 5x115 / 5x120, factory wheel and tire sizes for every year, the aftermarket sizes DriveRight lists as tested, wheels in stock that fit, and 2 real wheel builds on the Equinox.
See wheels on your EquinoxChevrolet Equinox wheel specs by year
| Years | Bolt pattern | Hub bore | Factory wheel | Factory tire | Lug thread | Tested aftermarket sizes |
|---|---|---|---|---|---|---|
| 2025–2027 | 5x115 | 70.3 mm | 17x7.5 +31 | 235/65R17M+S | M12x1.5 | 17 to 22 in, offsets +10 to +40 |
| 2022–2024 | 5x115 | 70.3 mm | 17x7 +41 | 235/50R19 | M12x1.5 | 16 to 22 in, offsets +30 to +46 |
| 2018–2021 | 5x115 | 70.3 mm | 17x6.5 +35 | 225/65R17 | M12x1.5 | 16 to 22 in, offsets +30 to +46 |
| 2010–2017 | 5x120 | 66.1 mm | 17x6.5 +35 | 225/65R17 | M14x1.5 | 17 to 22 in, offsets +30 to +46 |
| 2005–2009 | 5x115 | 70.3 mm | 16x6.5 +49 | 235/65R16 | M12x1.5 | 16 to 22 in, offsets +30 to +50 |
Specs: DriveRight vehicle data, base trim per year. Trims can differ; pick yours in the visualizer for an exact list.
Wheels in stock that fit the 2022 Chevrolet Equinox
Chevrolet Equinox wheel builds
2022 Chevrolet Equinox LTHeritage Wheel Kokoro MonoC 5X115 20x9+35 Silver

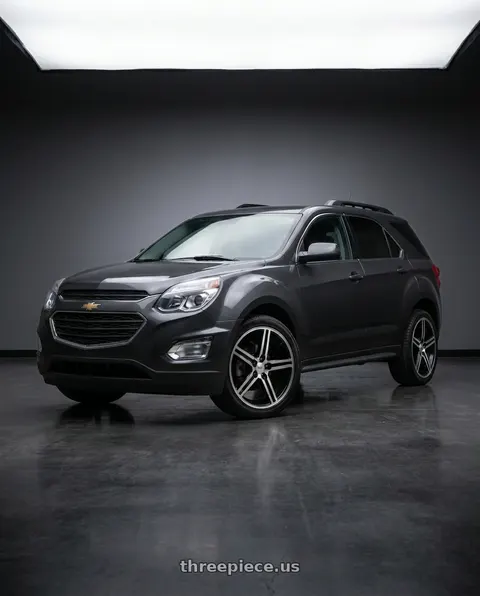

2017 Chevrolet EquinoxMazzi Edge 337 5x112/5x120 20x8.5+35 Gloss Black/Machined Face
