Chrysler Pacifica wheels
Chrysler Pacifica wheel fitment: bolt pattern 5x127, factory wheel and tire sizes for every year, the aftermarket sizes DriveRight lists as tested, wheels in stock that fit, and 2 real wheel builds on the Pacifica.
See wheels on your PacificaChrysler Pacifica wheel specs by year
| Years | Bolt pattern | Hub bore | Factory wheel | Factory tire | Lug thread | Tested aftermarket sizes |
|---|---|---|---|---|---|---|
| 2021–2026 | 5x127 | 71.6 mm | 17x7 +45 | 235/60R18 | M12x1.5 | 17 to 22 in, offsets -52 to +50 |
| 2016–2020 | 5x127 | 71.6 mm | 17x7 +45 | 235/65R17 | M12x1.5 | 17 to 22 in, offsets -52 to +50 |
| 2004–2008 | 5x127 | 71.6 mm | 17x7.5 +46 | 235/65R17 | M12x1.5 | 15 to 22 in, offsets -52 to +46 |
Specs: DriveRight vehicle data, base trim per year. Trims can differ; pick yours in the visualizer for an exact list.
Wheels in stock that fit the 2017 Chrysler Pacifica
Chrysler Pacifica wheel builds

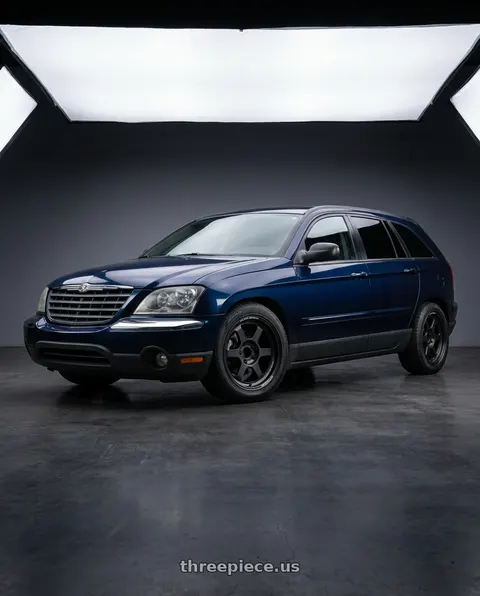

2006 Chrysler Pacifica TouringVolk Racing TE37XT M-SPEC 5x127 17x7.5+35 Blast Black

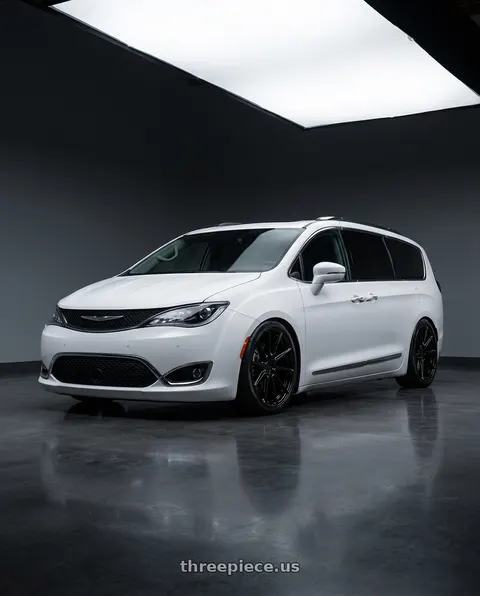

2017 Chrysler Pacifica LimitedVOSSEN HF6-1 6X135 22x9.5 +20 GLOSS BLACK
