Jeep Wagoneer wheels
Jeep Wagoneer wheel fitment: bolt pattern 5x114.3 / 6x139.7, factory wheel and tire sizes for every year, the aftermarket sizes DriveRight lists as tested, wheels in stock that fit, and 2 real wheel builds on the Wagoneer.
See wheels on your WagoneerJeep Wagoneer wheel specs by year
| Years | Bolt pattern | Hub bore | Factory wheel | Factory tire | Lug thread | Tested aftermarket sizes |
|---|---|---|---|---|---|---|
| 2022–2025 | 6x139.7 | 78.1 mm | 18x8 +19 | 275/55R20 | M14x1.5 | 18 to 22 in, offsets -50 to +25 |
| 1985–1990 | 5x114.3 | 71.6 mm | 15x6 +25 | 205/75R15 | 1/2 UNF | 15 to 20 in, offsets -25 to +25 |
| 1984 | 5x114.3 | 71.6 mm | 15x6 +25 | 205/75R15 | 1/2 UNF | 15 to 16 in, offsets +15 to +25 |
| 1973–1983 | 6x139.7 | 71.6 mm | 15x7 +10 | 235/75R15 | 7/16 UNF | 15 to 20 in, offsets -10 to +20 |
Specs: DriveRight vehicle data, base trim per year. Trims can differ; pick yours in the visualizer for an exact list.
Wheels in stock that fit the 2024 Jeep Wagoneer
Jeep Wagoneer wheel builds

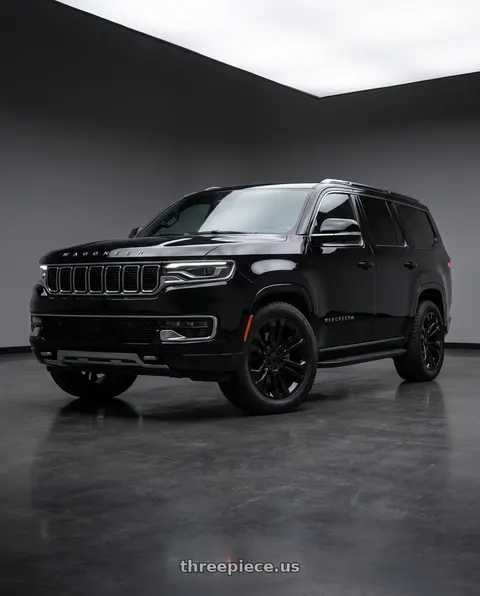

2022 Jeep WagoneerO.E. Revolution 158 6x139.7 22x9 +24 Gloss Black

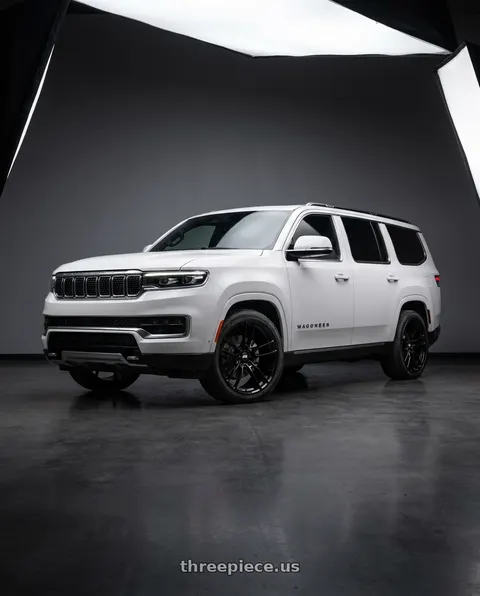

2024 Jeep WagoneerP51 Wheels 101RF 5X114.3 20x10 +35 Gloss Black
