Ford Edge wheels
Ford Edge wheel fitment: bolt pattern 5x108 / 5x114.3, factory wheel and tire sizes for every year, the aftermarket sizes DriveRight lists as tested, wheels in stock that fit, and 2 real wheel builds on the Edge.
See wheels on your EdgeFord Edge wheel specs by year
| Years | Bolt pattern | Hub bore | Factory wheel | Factory tire | Lug thread | Tested aftermarket sizes |
|---|---|---|---|---|---|---|
| 2015–2024 | 5x108 | 63.4 mm | 18x7.5 +55 | 245/60R18 | M14x1.5 | 18 to 22 in, offsets +35 to +55 |
| 2011–2014 | 5x114.3 | 63.4 mm | 17x7.5 +46 | 245/50R20 | 1/2 UNF | 17 to 22 in, offsets +25 to +46 |
| 2007–2010 | 5x114.3 | 70.6 mm | 17x7.5 +46 | 235/65R17 | 1/2 UNF | 17 to 22 in, offsets +25 to +46 |
Specs: DriveRight vehicle data, base trim per year. Trims can differ; pick yours in the visualizer for an exact list.
Wheels in stock that fit the 2012 Ford Edge
Ford Edge wheel builds

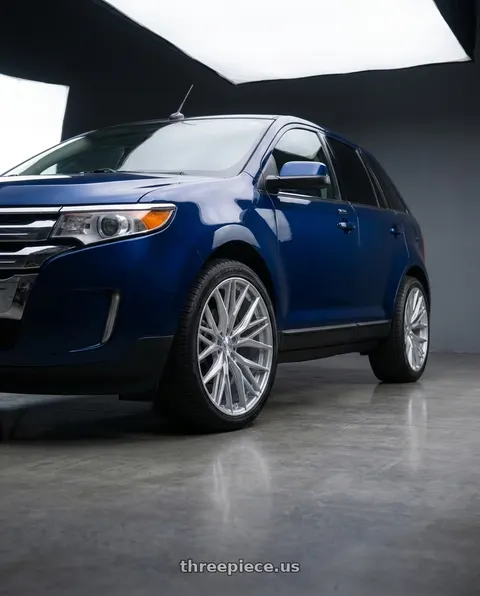

2012 Ford Edge LimitedAXE WHEELS EX55 5x114 22x9 +25 Silver

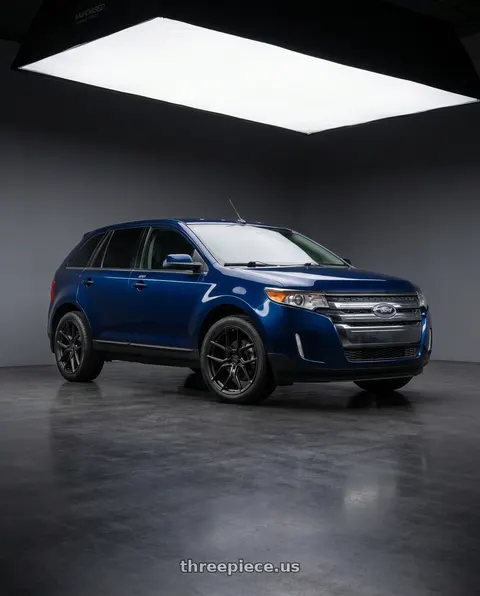

2012 Ford Edge LimitedMV Forged MVF5 5x114.3 22x9 +30 Satin Black
